The harmonic frequency of the signal edge is higher than the frequency of the signal itself, which is the unintended result of the signal transmission caused by the rapidly changing rising and falling edges (or signal jumps) of the signal. Therefore, it is generally agreed that if the line propagation delay is greater than the rise time of the 1/2 digital signal drive terminal, such signals are considered to be high-speed signals and produce transmission line effects. The following is about Ro4003CLoPro PCB related, I hope to help you better understand Ro4003CLoPro PCB.

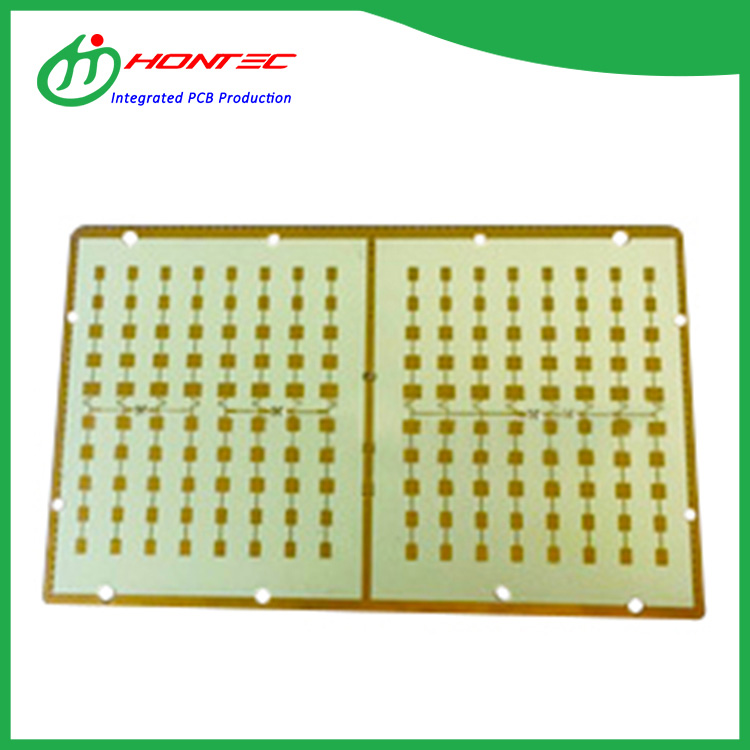

Quick Details of Ro4003CLoPro PCB
Place of Origin:Guangdong, China
Brand Name:Ro4003CLoPro high frequency board Model Number:Rigid-PCB
Base Material:Rogers
Copper Thickness:1oz Board Thickness:1.2mm
Min. Hole Size:0.2mm Min. Line Width:6mil Min. Line Spacing:6mil
Surface Finishing:ENIG
Number of layers:4L PCB Standard:IPC-A-600
Solder Mask:N/A
Legend:N/A
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 9 days

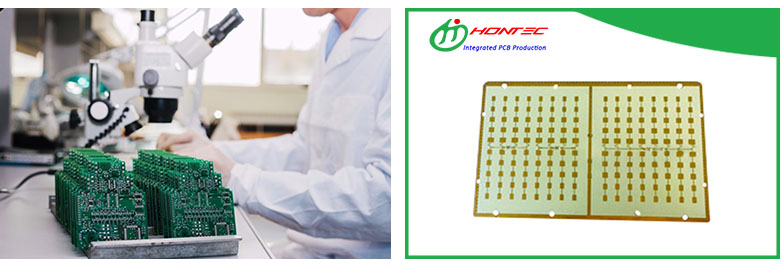

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
