In the world of wireless communication, radar systems, and advanced RF applications, the difference between reliable performance and signal failure often comes down to a single component: the High Frequency Board. As industries push into millimeter-wave territories, 5G infrastructure, automotive radar, and satellite communications, the demands placed on circuit materials have grown exponentially. HONTEC has established itself as a trusted manufacturer of High Frequency Board solutions, serving high-tech industries across 28 countries with a focus on high-mix, low-volume, and quick-turn prototype production.
The behavior of signals at high frequencies introduces challenges that standard PCB materials simply cannot address. Signal loss, dielectric absorption, and impedance variations become magnified as frequencies rise into the gigahertz range. HONTEC brings decades of specialized experience to every High Frequency Board project, combining advanced material selection with precision manufacturing processes. Located in Shenzhen, Guangdong, the company operates with certifications including UL, SGS, and ISO9001, while actively implementing ISO14001 and TS16949 standards to meet the rigorous demands of automotive and industrial applications.
Every High Frequency Board that leaves the facility reflects a commitment to controlled impedance, consistent dielectric properties, and meticulous fabrication. HONTEC partners with UPS, DHL, and world-class freight forwarders to ensure efficient global delivery, and every customer inquiry receives a response within 24 hours. This combination of technical capability and responsive service has made HONTEC a preferred partner for engineers and procurement specialists worldwide.
Material selection stands as the most critical decision in High Frequency Board fabrication. Unlike standard FR-4 materials, high frequency applications require laminates with stable dielectric constants and low dissipation factors across a wide frequency range. HONTEC works with a comprehensive portfolio of high-performance materials including Rogers 4000 series, which offers excellent balance of cost and performance for applications up to 8 GHz. For higher frequency requirements extending into millimeter-wave bands, materials like Rogers 3000 series or Taconic RF-35 provide the low-loss characteristics necessary for 5G and automotive radar systems. PTFE-based materials deliver exceptional electrical performance but require specialized handling due to their unique mechanical properties. The selection process involves evaluating the operating frequency range, environmental conditions, thermal management requirements, and budget constraints. HONTEC engineering team assists clients in matching material properties to specific application needs, ensuring that the final High Frequency Board delivers consistent performance without unnecessary material costs. Factors such as coefficient of thermal expansion, moisture absorption, and copper adhesion strength also play significant roles in material selection, particularly for applications exposed to harsh environmental conditions.
Impedance control on a High Frequency Board requires precision that extends beyond standard PCB manufacturing practices. HONTEC employs a multi-stage approach that begins with precise impedance calculation using field solvers that account for trace geometry, copper thickness, dielectric height, and material properties. During fabrication, each High Frequency Board undergoes rigorous process control that maintains trace width variations within tight tolerances, typically ±0.02 mm for critical impedance-controlled lines. The lamination process receives particular attention, as variations in dielectric thickness directly impact characteristic impedance. HONTEC utilizes impedance test coupons fabricated alongside each production panel, allowing for verification using time-domain reflectometry equipment. For designs requiring differential pairs or coplanar waveguide structures, additional testing ensures that impedance matching meets specifications across the entire signal path. Environmental factors such as temperature and humidity are also controlled during fabrication to maintain consistent material behavior. This comprehensive approach ensures that High Frequency Board designs achieve the impedance targets necessary for minimal signal reflection and maximum power transfer in RF and microwave applications.
Verifying the performance of a High Frequency Board requires specialized testing that goes beyond standard electrical continuity checks. HONTEC implements a testing protocol designed specifically for high-frequency applications. Insertion loss testing measures signal attenuation across the intended frequency range, ensuring that material selection and fabrication processes have not introduced unexpected losses. Return loss testing verifies impedance matching and identifies any impedance discontinuities that could cause signal reflections. For High Frequency Board designs incorporating antennas or RF front-end circuits, time-domain reflectometry provides detailed analysis of impedance profiles along transmission lines. Additionally, HONTEC performs micro-sectioning analysis to examine internal structures, verifying that layer alignment, via integrity, and copper thickness meet design specifications. For PTFE-based materials, plasma etching treatments and surface preparation are verified through peel strength testing to ensure reliable copper adhesion. Thermal cycling tests are conducted to confirm that the High Frequency Board maintains electrical stability across operating temperature ranges. Each board is documented with test results, providing clients with traceable quality records that support regulatory compliance and field reliability expectations.
The complexity of modern High Frequency Board designs demands manufacturing capabilities that can accommodate diverse requirements. HONTEC supports a wide range of structures, from simple two-layer RF boards to complex multi-layer configurations incorporating mixed dielectric materials. Mixed dielectric construction allows designers to combine high-performance materials for signal layers with cost-effective materials for non-critical layers, optimizing both performance and budget.
Surface finish selection for High Frequency Board applications receives careful consideration, with options including immersion gold for flat surfaces that maintain consistent impedance, and ENEPIG for applications requiring wire bonding compatibility. HONTEC technical team provides guidance on design for manufacturability, helping clients optimize stack-ups, via structures, and layout patterns for successful fabrication.
For engineers and product development teams seeking a reliable partner for High Frequency Board projects, HONTEC offers a combination of technical expertise, responsive communication, and proven manufacturing capability. The commitment to quality, backed by international certifications and a customer-first approach, ensures that every project receives the attention it deserves from prototype through production.
Ro3003 Material is a high frequency circuit material filled with PTFE composite material, which is used in commercial microwave and RF applications. The product series aims to provide excellent electrical and mechanical stability at competitive prices. Rogers ro3003 has excellent dielectric constant stability over the entire temperature range, including eliminating the change of dielectric constant when using PTFE glass at room temperature. In addition, the loss coefficient of the ro3003 laminate is as low as 0.0013 to 10 GHz.

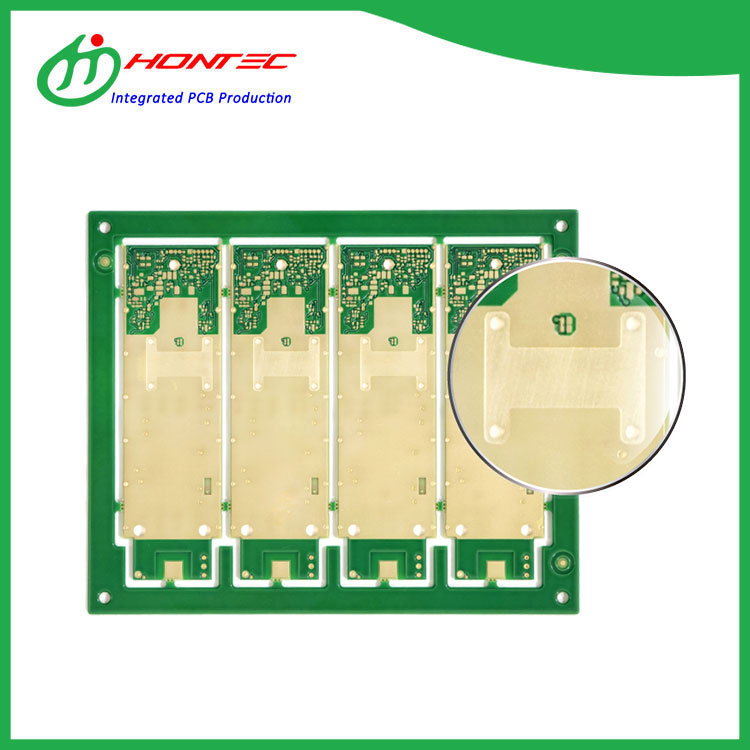

built-in Copper Coin PCB-- HONTEC uses prefabricated copper blocks to splice with FR4, then uses resin to fill and fix them, and then combines them perfectly by copper plating to connect them with the circuit copper
Ladder PCB technology can reduce the thickness of PCB locally, so that the assembled devices can be embedded in the thinning area, and realize the bottom welding of ladder, so as to achieve the purpose of overall thinning.
mmwave PCB-Wireless devices and the amount of data they process increase exponentially every year (53% CAGR). With the increasing amount of data generated and processed by these devices, the wireless communication mmwave PCB connecting these devices must continue to develop to meet the demand.
Arlon Electronic Materials Co., Ltd. is a well-known high-tech manufacturer, providing various high-tech electronic materials for the global high-tech printed circuit board industry. Arlon USA mainly produces thermosetting products based on polyimide, polymer resin and other high-performance materials, as well as products based on PTFE, ceramic filling and other high-performance materials! Arlon PCB processing and production
Microstrip PCB refers to high-frequency PCB. For special circuit board with high electromagnetic frequency, generally speaking, high frequency board can be defined as frequency above 1GHz. The high frequency board comprises a core plate with a hollow groove and a copper clad plate bonded to the upper surface and the lower surface of the core board through flow glue. The edges of the upper opening and the lower opening of the hollow groove are provided with ribs.
