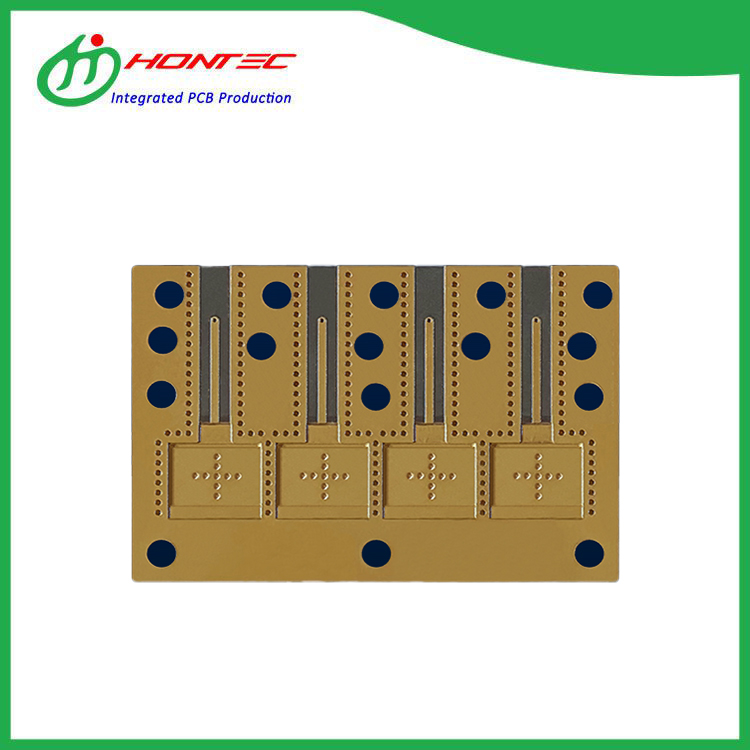

Microstrip PCB

Microstrip PCB refers to high-frequency PCB. For special circuit board with high electromagnetic frequency, generally speaking, high frequency board can be defined as frequency above 1GHz. The high frequency board comprises a core plate with a hollow groove and a copper clad plate bonded to the upper surface and the lower surface of the core board through flow glue. The edges of the upper opening and the lower opening of the hollow groove are provided with ribs.

Model:Microstrip PCB

Send Inquiry

Product Description

Quick Details of Microstrip PCB

Place of Origin: Guangdong, China

Brand Name: High-frequency PCB     Model Number: Rigid-PCB

Base Material: Rogers

Copper Thickness: 1oz                         Board Thickness: 1.6mm

Min. Hole Size: 0.2mm         Min. Line Width: 4 mil    Min. Line Spacing: 4mil

Surface Finishing: ENIG

Number of layers: 4L                            PCB Standard: IPC-A-600

Solder Mask: Green

Legend: White

Product quotation: Within 2 Hours

Service: 24Hours technical services          Sample delivery: Within 14 days

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
