The aperture ratio of PCB is also called the ratio of thickness to diameter, which refers to the thickness of the board / aperture. If the aperture ratio exceeds the standard, the factory will not be able to process it. The limit of the aperture ratio cannot be generalized. For example, via holes, laser blind holes, buried holes, solder mask plug holes, resin plug holes, etc. are different. The aperture ratio of the via hole is 12: 1, which is a good value. The industry limit is currently 30: 1. The following is about 8MM Thick PCB related, I hope to help you better understand 8MM Thick PCB.

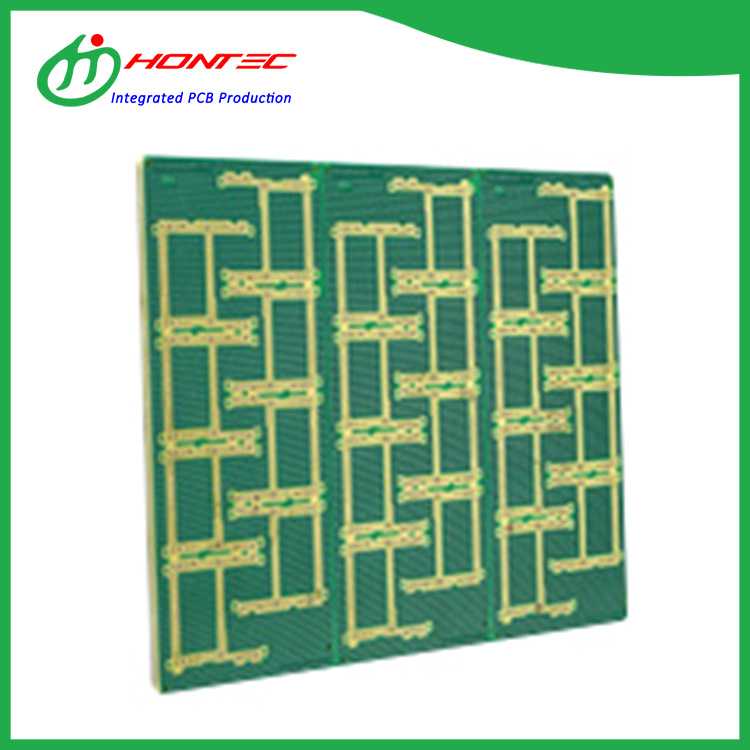

Quick Details of 8MM Thick PCB
Place of Origin:Guangdong, China
Brand Name:8MM thick board Model Number:Rigid-PCB
Base Material:ShengYi
Copper Thickness:1oz Board Thickness:8mm
Min. Hole Size:0.5mm Min. Line Width:10mil Min. Line Spacing:10mil
Surface Finishing:ENIG
Number of layers:10L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 10 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
