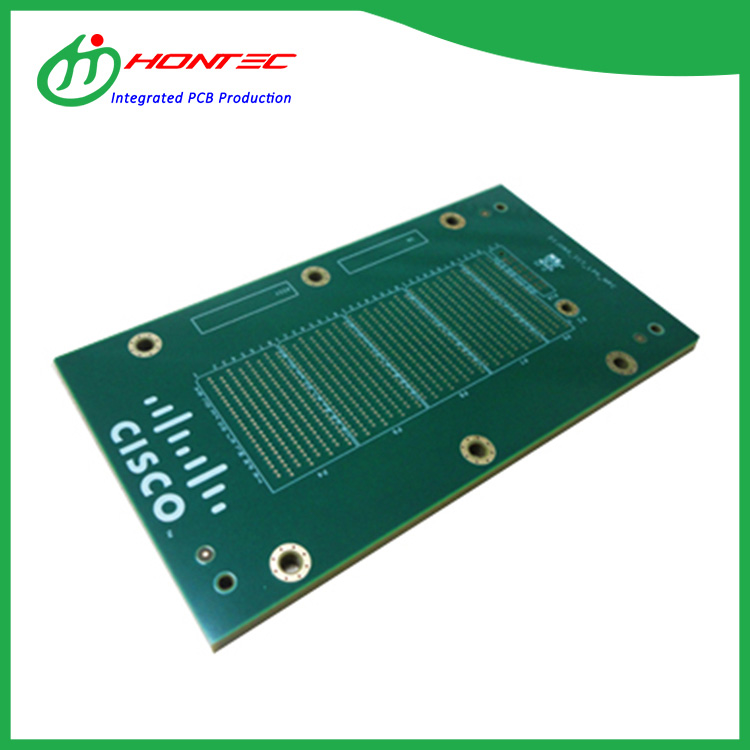

Tachyon 100G PCB

Tachyon 100G PCB The exposure equipment is in the same environment. The alignment tolerance of the front and back images of the entire area must be maintained at 0.0125mm. The CCD camera is required to complete the front and rear layout alignment. After etching, the four-hole drilling system was used to perforate the inner layer. The perforation passes through the core board, the position accuracy is maintained at 0.025mm, and the repeatability is 0.0125mm. The following is about Tachyon 100G High-speed PCB related, I hope to help you better understand Tachyon 100G High-speed PCB.

Model:Tachyon 100G PCB

Send Inquiry

Product Description

Quick Details of Tachyon 100G PCB

Place of Origin:Guangdong, China

Brand Name:Tachyon 100G High-speed backplane      Model Number:Rigid-PCB

Base Material:VenTec

Copper Thickness:1oz                         Board Thickness:2.5mm

Min. Hole Size:0.1mm         Min. Line Width:2.5mil    Min. Line Spacing:2.5mil

Surface Finishing:ENIG

Number of layers:18L                            PCB Standard:IPC-A-600

Solder Mask:Green

Legend:White

Product quotation:Within 2 Hours

Service:24Hours technical services          Sample delivery:Within 04 days

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
