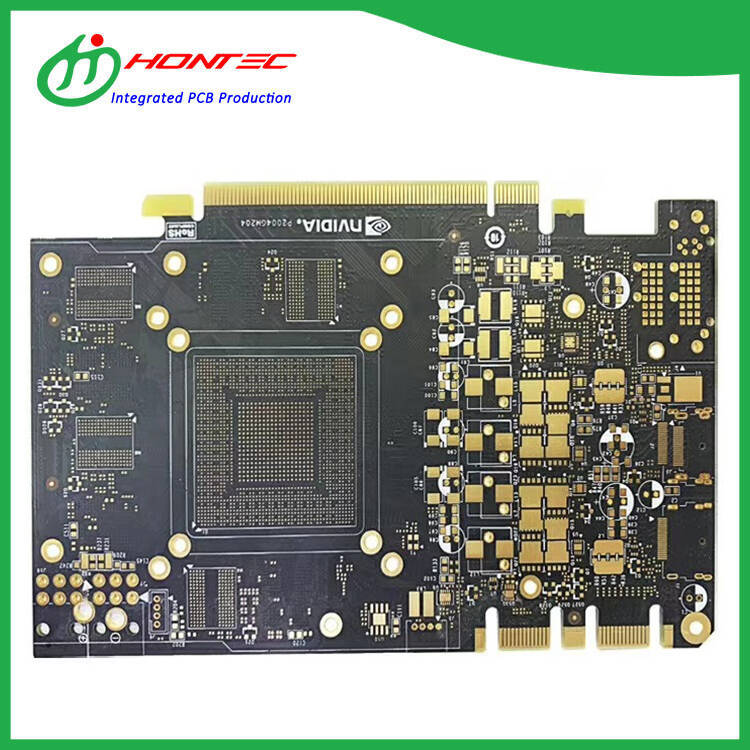

The golden finger is composed of many golden yellow conductive contacts. It is called "golden finger" because its surface is gilded and the conductive contacts are arranged like fingers. The step gold finger PCB is actually coated with a layer of gold on the copper clad laminate by a special process, because the gold has strong oxidation resistance and strong conductivity.
Quick Details of Step Gold finger PCB
Place of Origin: Guangdong, China
Brand Name: Gold finger PCB Model Number: Rigid-PCB
Base Material: ITEQ
Copper Thickness: 1oz Board Thickness: 2.3mm
Min. Hole Size: 0.2mm Min. Line Width: 3.5mil Min. Line Spacing: 3.5mil
Surface Finishing: ENIG+ Hard gold
Number of layers: 10L PCB Standard: IPC-A-600
Solder Mask: Black
Legend: White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 14 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
