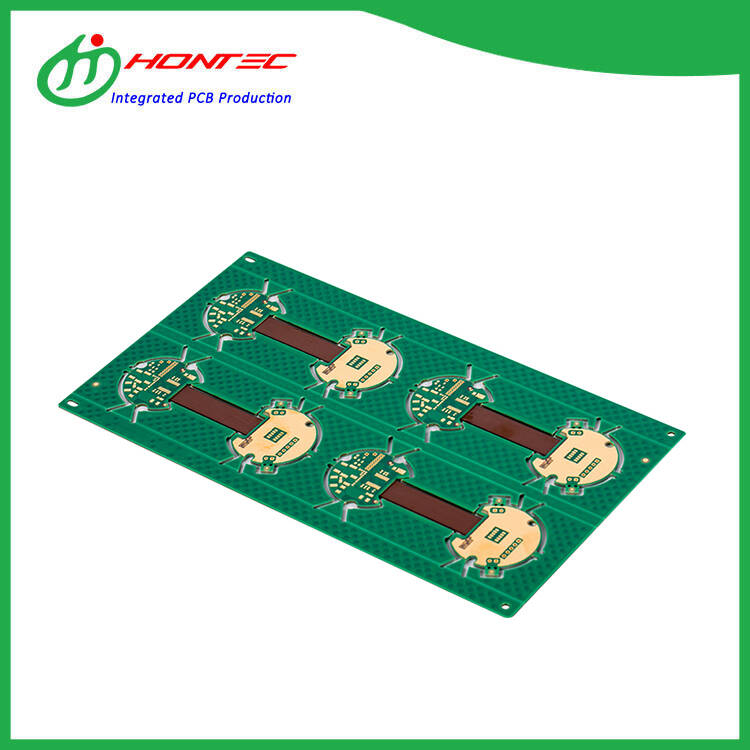

AP8545R Rigid-Flex PCB

AP8545R Rigid-Flex PCB refers to the combination of soft board and hard board. It is a circuit board formed by combining the thin flexible bottom layer with the rigid bottom layer, and then laminating into a single component. It has the characteristics of bending and folding. Due to the mixed use of various materials and multiple manufacturing steps, the processing time of rigid Flex PCB is longer and the production cost is higher.

Model:AP8545R Rigid-Flex PCB

Send Inquiry

Product Description

Quick Details of AP8545R Rigid-Flex PCB

Place of Origin: Guangdong, China

Brand Name: 22-Layer Rigid-Flex PCB      Model Number: Rigid-Flex PCB

Base Material: ITEQ

Copper Thickness: 1oz                         Board Thickness: 2.4mm

Min. Hole Size: 0.2mm         Min. Line Width: 3.5mil    Min. Line Spacing: 3.5mil

Surface Finishing: ENIG

Number of layers: 22L                            PCB Standard: IPC-A-600

Solder Mask: Green

Legend: White

Product quotation: Within 2 Hours

Service: 24Hours technical services          Sample delivery: Within 14 days

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
