The process of Meg6 high speed PCB design is usually: Layout - pre wiring simulation - change layout - post wiring simulation, and the wiring is not started until the simulation results meet the requirements.
M6 high speed PCB--Generally, if the frequency of the circuit reaches or exceeds 50MHz, and the circuit working on this frequency accounts for more than 1 / 3 of the whole system, it can be called high speed circuit.

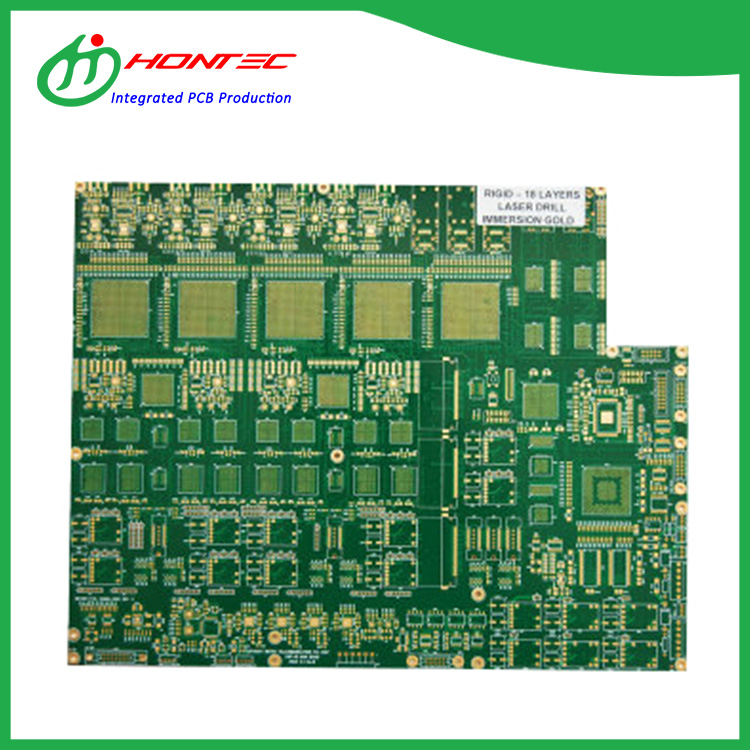

It is generally believed that if the frequency of a digital logic circuit reaches or exceeds 45MHZ ~ 50MHZ, and the circuit operating above this frequency has already occupied a certain portion of the entire electronic system (say 1/3), it is called a high-speed circuit. The following is about R5775G High-speed PCB related, I hope to help you better understand R5775G High-speed PCB.
