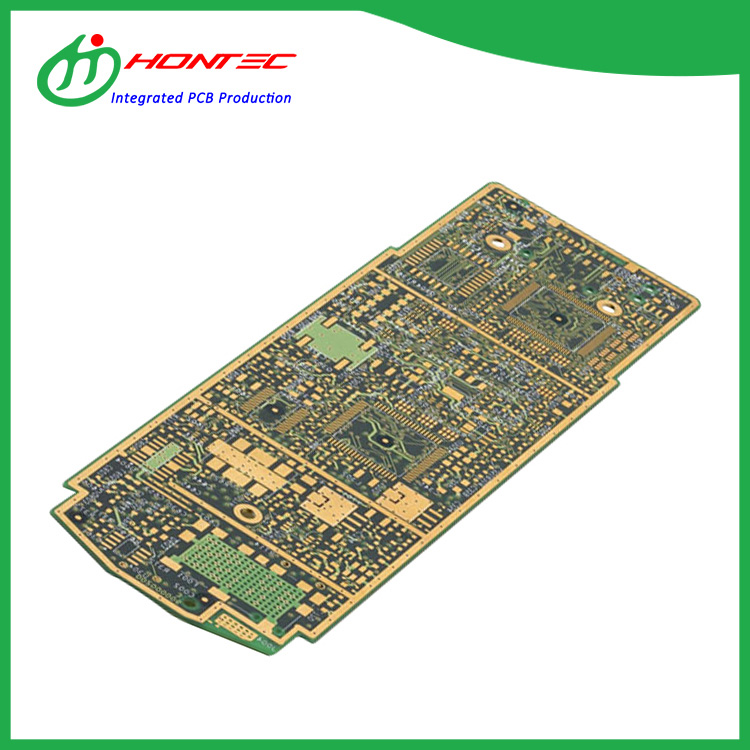

10-Layer ELIC HDI PCB In order to avoid confusion, the American IPC Circuit Board Association proposed to call this kind of product technology a common name for HDI (High Density Intrerconnection) technology. If it is directly translated, it will become a high-density interconnection technology. The following is about 10-Layer ELIC HDI PCB related, I hope to help you better understand 10-Layer ELIC HDI PCB.
Quick Details of 10-Layer ELIC HDI PCB
Place of Origin:Guangdong, China
Brand Name:Smartphone PCB Model Number:Rigid-PCB
Base Material:ITEQ
Copper Thickness:1oz Board Thickness:1.2mm
Min. Hole Size:0.1mm Min. Line Width:2.4mil Min. Line Spacing:2.4mil
Surface Finishing:ENIG
Number of layers:10L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 14 days

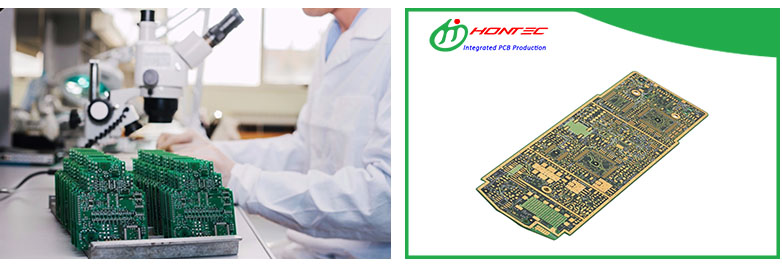

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
