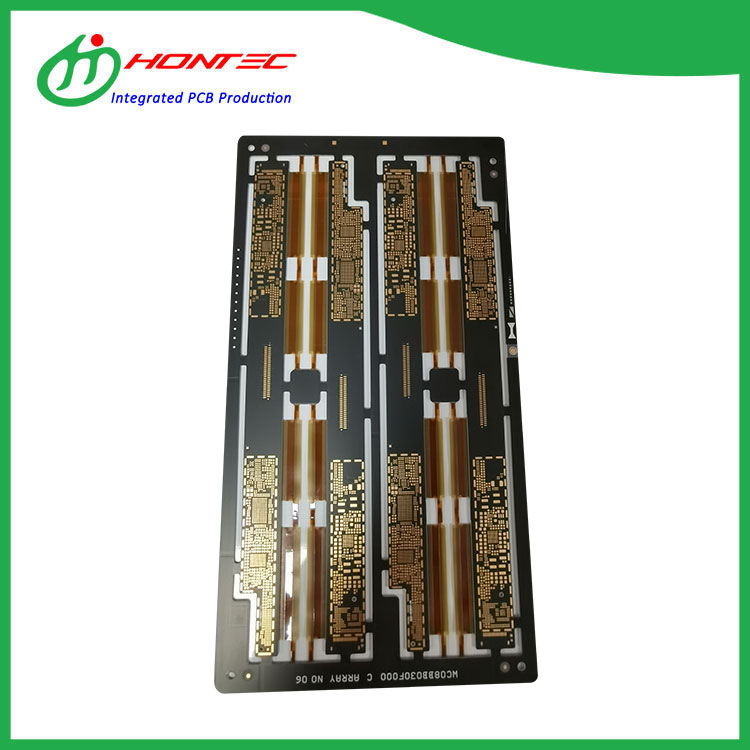

ELIC Rigid-Flex PCB

ELIC Rigid-Flex PCB is the interconnection hole technology in any layer. This technology is the patent process of Matsushita Electric Component in Japan. It is made of short fiber paper of DuPont's "poly aramid" product thermount, which is impregnated with high-function epoxy resin and film. Then it is made of laser hole forming and copper paste, and copper sheet and wire are pressed on both sides to form a conductive and interconnected double-sided plate. Because there is no electroplated copper layer in this technology, the conductor is only made of copper foil, and the thickness of the conductor is the same, which is conducive to the formation of finer wires.

Model:ELIC Rigid-Flex PCB

Send Inquiry

Product Description

Quick Details of ELIC Rigid-Flex PCB

Place of Origin: Guangdong, China

Brand Name: ELIC Rigid-Flex PCB      Model Number: Rigid-Flex PCB

Base Material: VenTec

Copper Thickness: 1oz                         Board Thickness: 1.0mm

Min. Hole Size: 0.2mm         Min. Line Width: 4mil    Min. Line Spacing: 4mil

Surface Finishing: ENIG

Number of layers: 4L                            PCB Standard: IPC-A-600

Solder Mask: Green

Legend: White

Product quotation: Within 2 Hours

Service: 24Hours technical services          Sample delivery: Within 14 days

HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
