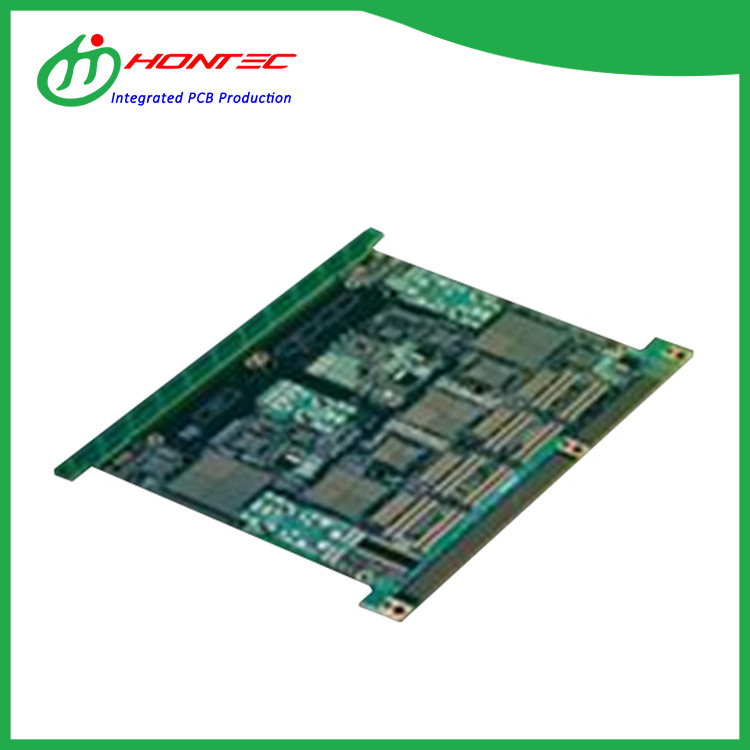

24-Layer Buried capacitance PCB has a process called burying resistance, which is to put chip resistors and chip capacitors into the inner layer of the PCB board. These chip resistors and capacitors are generally very small, such as 0201, or even smaller 01005. The PCB board produced in this way is the same as a normal PCB board, but a lot of resistors and capacitors are placed in it. For the top layer, the bottom layer saves a lot of space for component placement. The following is about 24 Layer Buried capacitance PCB related, I hope to help you better understand 24 Layer Buried capacitance PCB.
Quick Details of Buried capacitance PCB
Place of Origin:Guangdong, China
Brand Name:24-Layer Buried capacitance PCB Model Number:Rigid-PCB
Base Material:Megtron and 3M C-Ply and Ohmega
Copper Thickness:1oz Board Thickness:2.5mm
Min. Hole Size:0.1mm Min. Line Width:2.5mil Min. Line Spacing:2.5mil
Surface Finishing:ENIG
Number of layers:24L PCB Standard:IPC-A-600
Solder Mask:Green
Legend:White
Product quotation:Within 2 Hours
Service:24Hours technical services Sample delivery:Within 20 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
