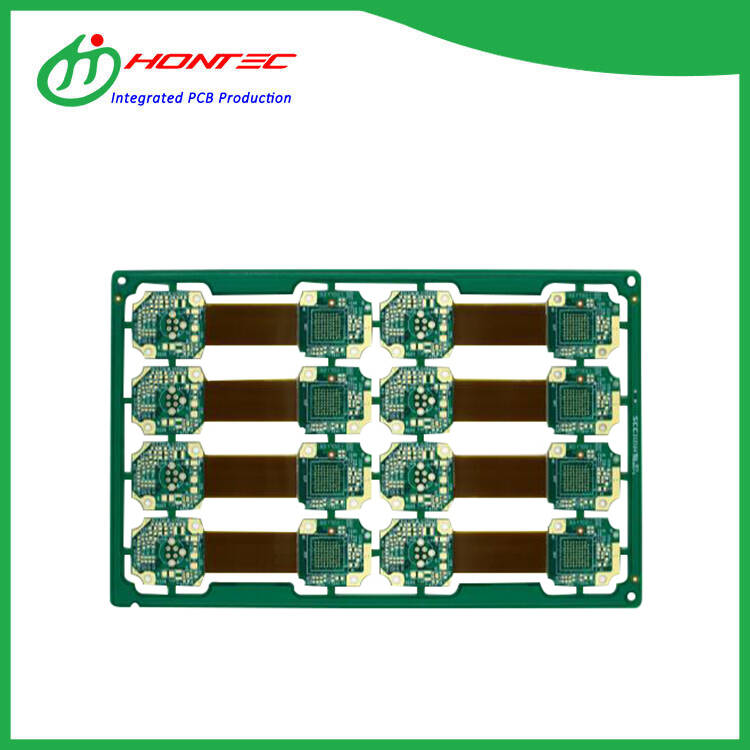

18-Layer Rigid-Flex PCB

18-Layer Rigid-Flex PCB refers to a printed circuit board containing one or more rigid areas and one or more flexible areas, which is composed of rigid boards and flexible boards orderly laminated together, and is electrically connected with metallized holes. Rigid Flex PCB not only can provide the support function that rigid pcb should have, but also has the bending property of flexible board, which can meet the requirements of 3D assembly.

Model:18-Layer Rigid-Flex PCB

Send Inquiry

Product Description

18-Layer Rigid-Flex PCB Quick Details

Place of Origin: Guangdong, China

Brand Name: 18-Layer Rigid-Flex PCB      Model Number: Rigid-Flex PCB

Base Material: TUC

Copper Thickness: 1oz                         Board Thickness: 1.2mm

Min. Hole Size: 0.2mm         Min. Line Width: 5mil    Min. Line Spacing: 5mil

Surface Finishing: ENIG

Number of layers: 18L                            PCB Standard: IPC-A-600

Solder Mask: Green

Legend: White

Product quotation: Within 2 Hours

Service: 24Hours technical services          Sample delivery: Within 14 days
