As TU-768 Rigid-Flex PCB design is widely used in many industrial fields, in order to ensure a high first-time success rate, it is very important to learn the terms, requirements, processes and best practices of rigid flex design. TU-768 Rigid-Flex PCB can be seen from the name that rigid flex combination circuit is composed of rigid board and flexible board technology. This design is to connect the multilayer FPC to one or more rigid boards internally and / or externally.

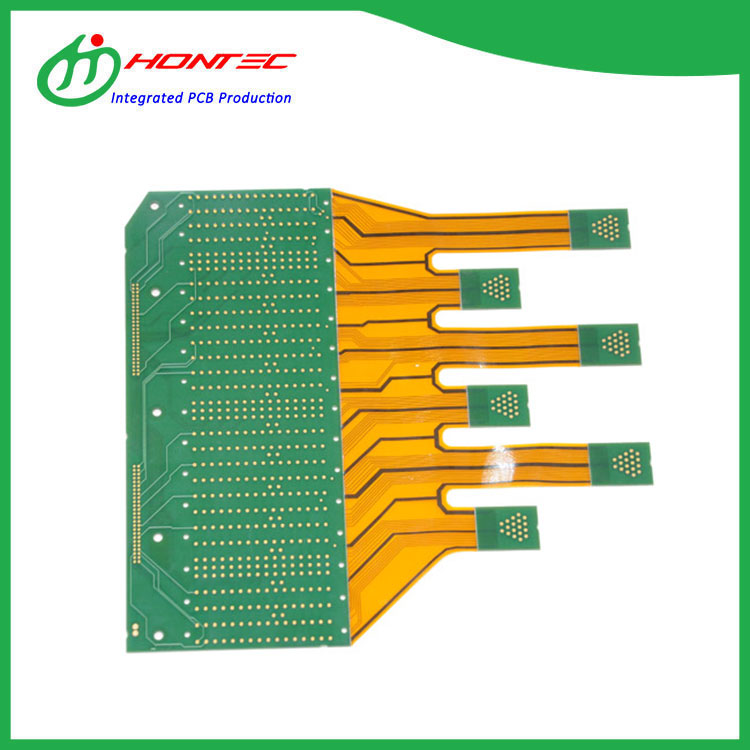

Quick Details of TU-768 Rigid-Flex PCB
Place of Origin: Guangdong, China
Brand Name: TUC Rigid-Flex PCB Model Number: Rigid-Flex PCB
Base Material: TUC
Copper Thickness: 1oz Board Thickness: 1.0mm
Min. Hole Size: 0.2mm Min. Line Width: 4.5mil Min. Line Spacing: 4.5mil
Surface Finishing: ENIG
Number of layers: 6L PCB Standard: IPC-A-600
Solder Mask: Green
Legend: White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 14 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
