TU-752 High-speed PCB digital circuit has high frequency and strong sensitivity of analog circuit. For signal line, high frequency signal line should be far away from sensitive analog circuit device as far as possible. For ground wire, the whole PCB has only one node to the outside world. Therefore, it is necessary to deal with the problem of common ground of digital and analog in PCB, while in the board, digital ground and analog ground are actually separated, and they are not mutually related Connection is only at the interface between PCB and the outside world (such as plug, etc.). There is a little short circuit between digital ground and analog ground, please note that there is only one connection point. Some of them are not grounded on the PCB, which is decided by the system design.

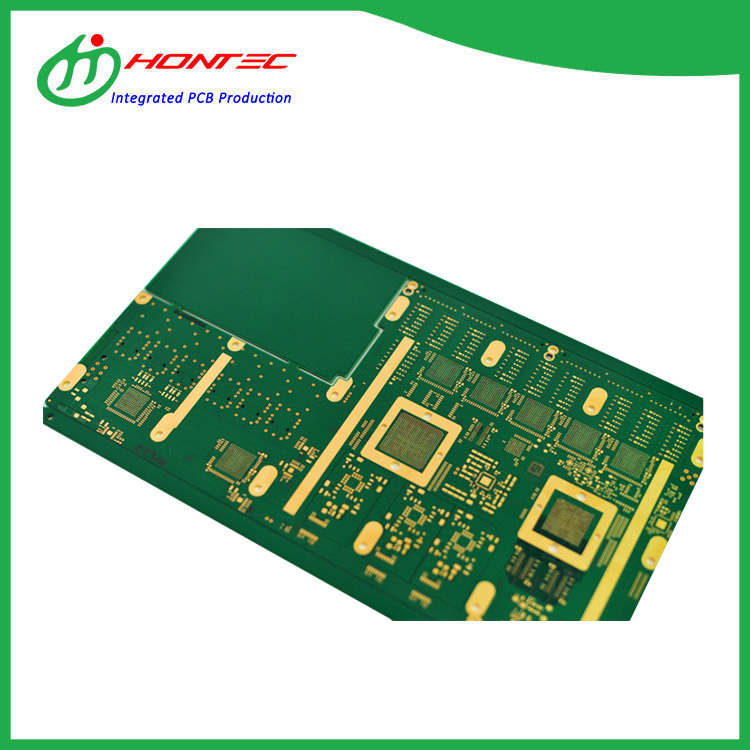

Quick Details of TU-752 High-speed PCB
Place of Origin: Guangdong, China
Brand Name: TU-752 High-speed PCB Model Number: Rigid PCB
Base Material: TUC
Copper Thickness: 1oz Board Thickness: 3.6mm
Min. Hole Size: 0.1mm Min. Line Width: 4.5mil Min. Line Spacing: 4.5mil
Surface Finishing: ENIG
Number of layers: 36L PCB Standard: IPC-A-600
Solder Mask: Green
Legend: White
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 14 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
