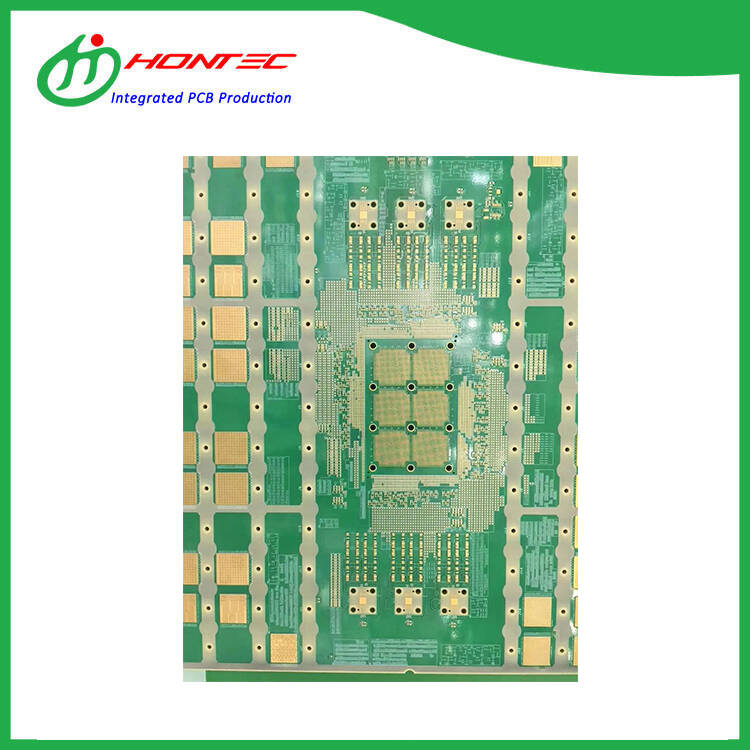

Definition of Meg7 High speed PCB: it is generally believed that if the frequency of the digital logic circuit reaches 45,50MHz and the circuit working at this frequency accounts for a certain proportion of the whole system (such as 1amp 3), it will become a high speed circuit.
M7N high speed PCB--For digital circuits, the key is to look at the edge of the signal steepness, that is, the rise and fall time of the signal. The time when the signal rises from 10% to 90% is less than 6 times of wire delay, which is the high speed signal!
Megtron7 High speed PCB -- high speed circuit design technology has become a design method that electronic system designers must adopt. Only by using the design technology of high-speed circuit designer can the controllability of design process be realized.
