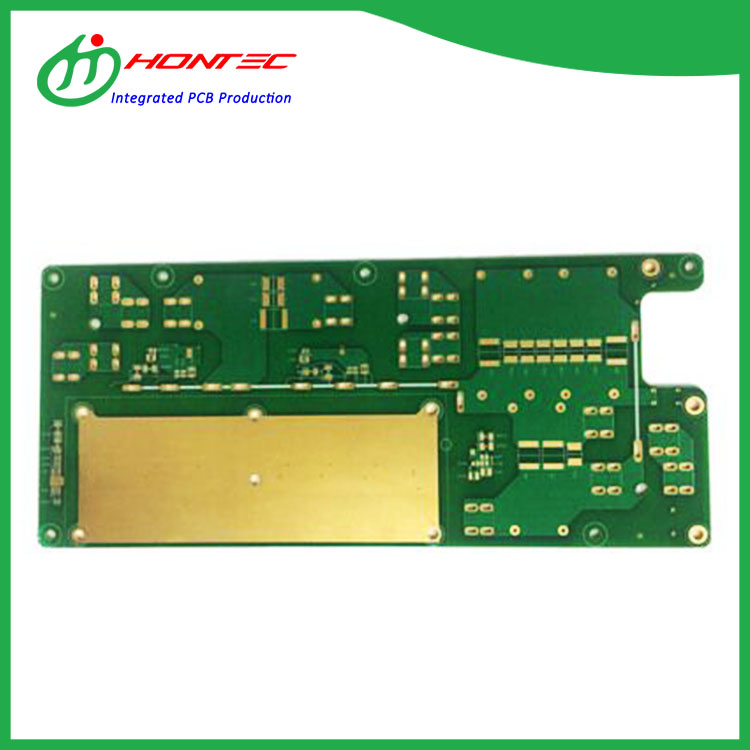

The so-called Buried Copper Coin PCB is a PCB board in which a copper Coin is partially embedded on the PCB. The heating elements are directly attached to the surface of the copper Coin board, and the heat is transferred out through the copper Coin.
Quick Details of Buried Copper Coin PCB
Place of Origin: Guangdong, China
Brand Name: Buried Copper Coin PCB Model Number: Rigid-PCB
Base Material: ShengYi and Coin
Copper Thickness:1oz Board Thickness: 2.2mm
Min. Hole Size: 0.2mm Min. Line Width: 5mil Min. Line Spacing: 5mil
Surface Finishing: ENIG
Number of layers: 8L PCB Standard: IPC-A-600
Solder Mask: Green
Product quotation: Within 2 Hours
Service: 24Hours technical services Sample delivery: Within 16 days
HONTEC Quick Electronics Limited (HONTEC), established in 2009, is one of leading quickturn Printed Circuit Board manufacturer, who specializes in high-mix, low volume and quickturn prototype PCB for high-tech industries in 28 countries. Upon efficiently quick around operation, PCB products contain 4 to 48 layers, HDI, Heavy Copper, Rigid-Flex, high frequency microwave,and Embedded Capacitance, and provides "PCB One-stop Shop" service to meet customers’ diverse demands. HONTEC is capable of producing 4,500 varieties monthly to meet 24-hour delivery for 4 layers PCB, 48-hour for 6 layers and 72-hour for 8 or more high-layer PCB at the fastest. Located in SiHui of GuangDong,HONTEC partners up with UPS, DHL and world-class forwarders to provide efficient shipping services.
